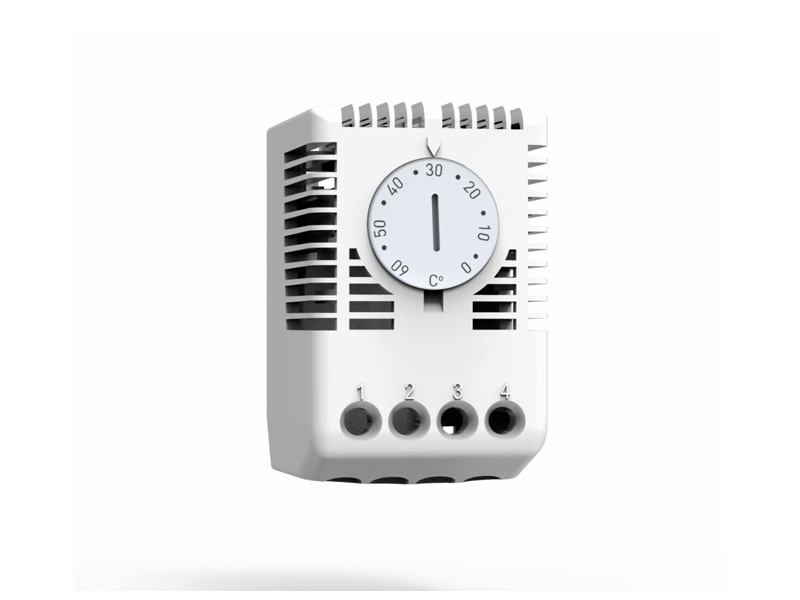

Thermostat, ETR200
Category:
nVent Hoffman
|
Code:
ETR200
This adjustable temperature thermostat, ETR200, for any enclosure, with either a normally open (NO) and normally closed (NC) contact, is used to control installed devices. Such devices could be a filter fan or a fan heater, that should turn on or off at the required temperature level, set by the user. The result is reduced operational cost. The product's versatility is high, since either cooling or heating can be controlled by the two different types of contacts that are housed within the same thermostat.
Thông tin chi tiết
Features
Description: Thermostat with changeover contact to manage any kind of device, heater or cooling. Sensor element thermostatic bimetal. Mounting clip for 35 mm DIN rail (EN 60715).
Material: Plastic according to UL94 V-0.
Setting range: 0 °C to +60 °C. Switching temperature difference less than 3 °K, and switching point tolerance ±3 °K.
Switch capacity: NC contact, 100-250 V AC, 10(2) A. NO contact, 100-250 V AC, 5(2) A, for 230 V AC operation only. 24 V DC, 30 W. Value in brackets for inductive load.
Operating temperature: -40 °C to +80 °C.
Service life: > 100,000 cycles.
Connection: Screw terminal for cable (0.5 to 2.5 mm²).
Protection: IP 20.
Approvals: CE, EAC, cULus_UL Listed.
Finish: RAL 7035.
Pack quantity: 1 piece.
