Thông tin chi tiết

Features

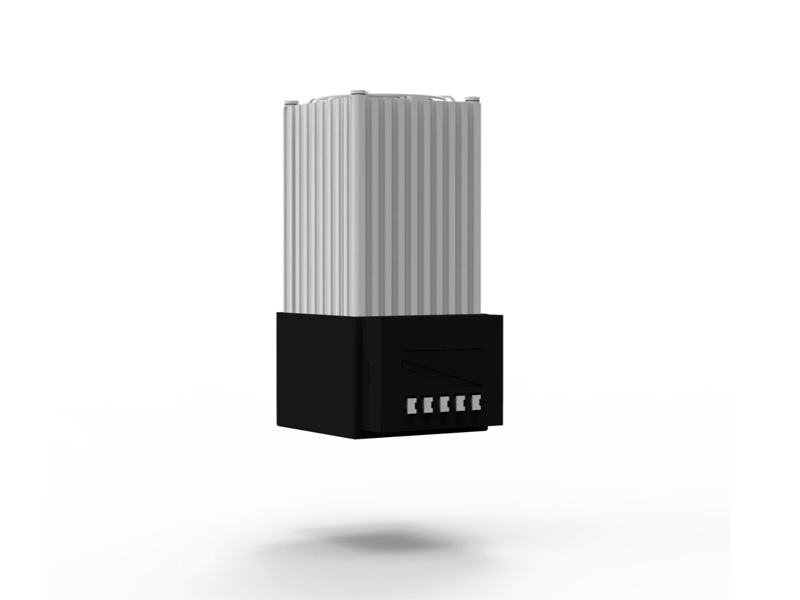

Description: Heater with fan to be fixed as desired

Heating element: PTC resistor, self regulating and temperature limiting.

Fan life: 50.000 h at 25 °C.

Material: Plastic, and anodised aluminium profile.

Operating temperature: -40 °C to +70 °C. The heating capacity is for ambient temperature 20 °C.

Connection: Plug terminal connection (2 × 0.5-2.5 mm²).

Protection: IP 20, Class I (earthed).

Approvals: CE, EAC, cULus_UL Listed.

Pack quantity: 1 piece.

When installed, water condensation will be avoided especially in situations when the ambient temperature dramatically drops

As the air will be distributed by the integrated fan, hot spots within the enclosure will be prevented

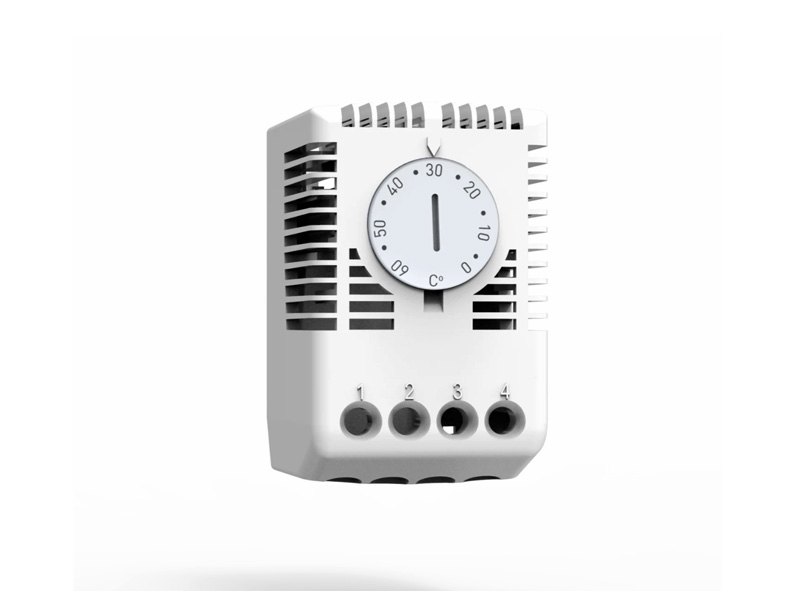

A thermostat with a normally closed contact, ETR or EFR, is recommended in order to control the heater

Voltage (V): EGL250UL115, EGL400UL115 - 120 V AC, 50/60 Hz; EGL250UL230, EGL400UL230 - 230 V AC, 50/60 Hz
