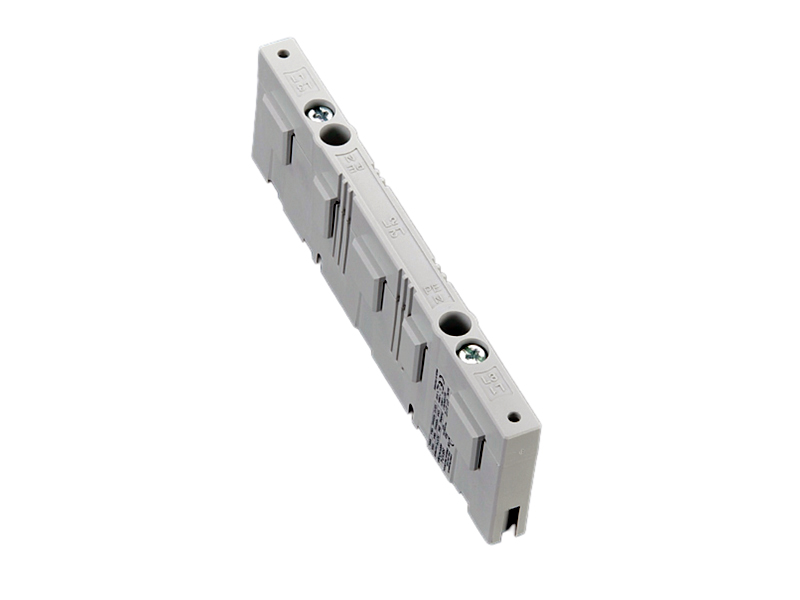

Thông tin chi tiết
| Details IEC |
| Standards |
| IEC 61439-1:2020 |
| Electrical data IEC |
| rated voltage (IEC) AC: |
690 V |
| rated frequency (IEC): |
50 / 60 Hz |
| rated isolation voltage Ui AC: |
800 V |
| rated surge voltage Uimp : |
6 kV |
| rated peak withstand current Ipk max.: |
54 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Supplementary data IEC |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
|
| min. permitted operation temperature |
-40°C |
short-circuit capacity IEC / EN :
3-pole: Ipk max. = 54 kA (busbar 12x10, 2 busbar supports in 250 mm distance)
go to calculation for 3-pole system (IEC)
4- and 5-pole : Ipk = 32 kA (2 busbar supports in 250 mm distance)
go to calculation for 5-pole system (IEC) |
| Details UL |
| Standards |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL |
| rated voltage (UL) AC: |
600 V |
| rated frequency (UL): |
50 / 60 Hz |
| SCCR unprotected max.: |
18 kA |
| |
3 cycles (without OPD) @ 600 V AC |
| Mechanical data |
| W x H x D: |
15 x 156 x 45 |
| weight: |
6.8 kg/100 |
| poles: |
3-pole |
| Material properties |
| halogen-free: |
Yes |
