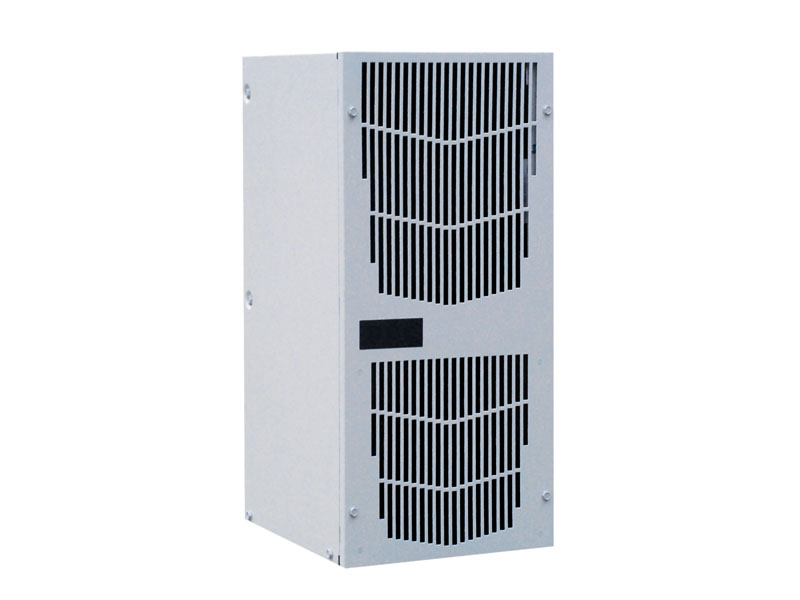

V-Series Compact Air Conditioner
Category:
nVent Hoffman
|
Code:
V-Series
V-Series Compact Air Conditioners are designed to deliver vital cooling to sensitive electronics. They meet a broad range of cooling requirements, including an all metal shroud to stand up to rugged factory conditions. Units have operating temperature ranges from 20°C to 55°C for indoor models and -40°C to 55°C for outdoor models. The coils are coated for filterless operation in most manufacturing environments or an optional aluminum filter can be used. Each unit is rigorously tested to withstand shipping vibration, high temperatures and other operating challenges.
Thông tin chi tiết
Features
Stock models are equipped with mechanical thermostats at enclosure side
Easy to mount and replace mesh filters
Stock models approved by CE, NEMA 4, IP56 protection class
Compact design can minimize enclosure real estate and maximize cooling capacity at the same overall dimensions
Exterior surface mounting standard
When properly installed to enclosure at the same protection level, it can achieve NEMA 4, IP56 rain-protection level
Operating temperature range from -40 C to 55 C
100% functionally tested
Power input: terminal block
Controller: mechanical temperature controller
Thermostat location: enclosure side
Factory thermostat setting (F/C): 86/30
